The Beam Details

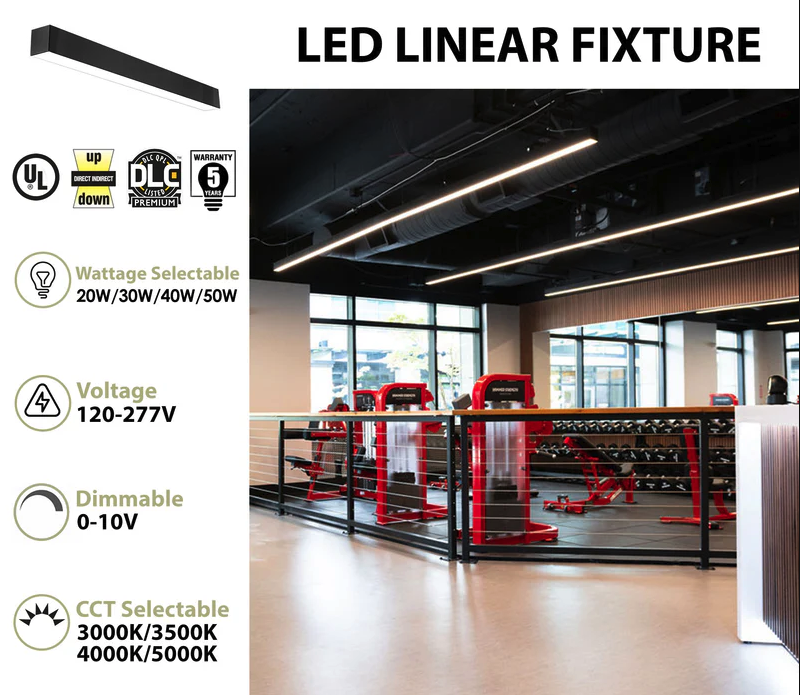

This LED Beam suspended linear fixture delivers clean architectural lines and high-quality illumination for modern commercial spaces. Available in 2′, 4′, 6′, and 8′ lengths, it can be installed as a standalone fixture or seamlessly joined to create a continuous run of light. The frosted white lens provides smooth, even illumination while minimizing glare for a comfortable visual environment. Featuring adjustable direct/indirect lighting distribution from 0–100%, this fixture offers flexible light control to suit a wide range of applications and design needs.
| Item Number | Wattage | Lumen Max | CCT | Dimensions | Finish |
|---|---|---|---|---|---|
| BEAMLED2-ADJ-DID-30W-4CT-DMV-[BK,WH]-G3 | 15W/20W/25W/30W | 3,300 | 30K/35K/40K/50K | 23.9"L x 2.76"W x 3.35"H | Black or White |
| BEAMLED4-ADJ-DID-50W-4CT-DMV-[BK, WH, SV]-G3 | 20W/30W/40W/50W | 5,500 | 30K/35K/40K/50K | 47.4"L x 2.76" W x 3.35"H | Black, White or Silver |
| BEAMLED6-ADJ-DID-75W-4CT-DMV-[BK, WH]-G3 | 30W/45W/60W/75W | 8,250 | 30K/35K/40K/50K | 70.71"L x 2.76"W x 3.35"H | Black or White |
| BEAMLED8-ADJ-DID-100W-4CT-DMV-[BK, WH, SV]-G3 | 40W/60W/80W/100W | 11,000 | 30K/35K/40K/50K | 94.4”L x 2.76”W x 3.35”H | Black, White or Silver |
- Available Sizes: 2′, 4′, 6′, and 8′
- Available Finishes: Black, White, and Silver (4′ and 8′ only)

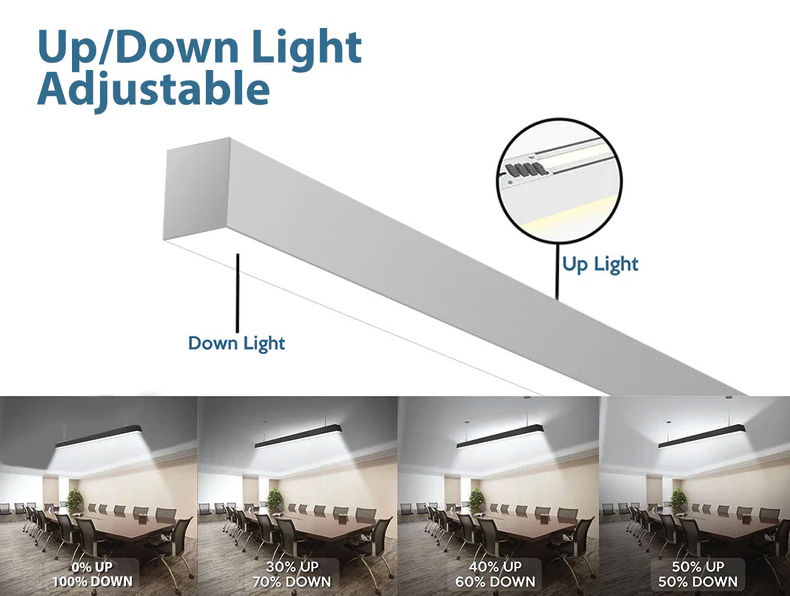

- Fixture Type: Direct/Indirect (combination uplight and downlight with independently selectable color temperature and adjustable percentage of up and down light output)
- 4CCT Selectable: 3000K/3500K/4000K/5000K
- Wattage Selectable
- 0-10V Dimmable
- Ratings: cULus, Damp Location (all models), and DLC v5.1 (4’ and 8’ models only)
- Mount Options: Suspended (kit included), Wall Mount, T-Bar, Mud Flange, and Recessed Flange
- Compatible with “L,” “X,” “Y,” “V,” and “T” -shaped connector pieces
